Counter Scale
STCH3 / DTCH3 / LTCH3 / FTCH3

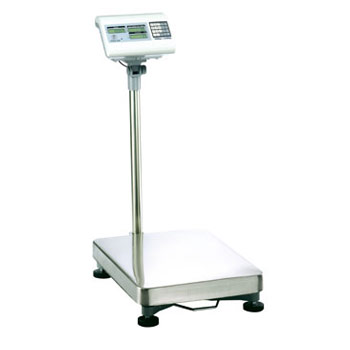

High Resolution Counting Bench Scale
High Resolution Counting Bench Scale
◉ TCH3 up to 1/30,000 display resolution
◉ High speed 24bits AD; Display reading speed faster
◉ Faster weighing stability
- TCH3 up to 1/30,000 display resolution
- High speed 24bits AD; Display reading speed faster
- Faster weighing stability
- Faster zero return
- Zero key and Tare key react faster
- Anti-interference (EMS+EMI): Anti-radiation, Anti-static electricity, Anti- input power are stronger than the old type
- LCD displays full tare (Weight-6digits、Unit Weight-6 digits、Quantity-6 digits)
- 10 sets PWLU (preset unit weight preset tare look up)
- Auto calibration function, OL protection
- Weight and quantity over-limit warning
- Auto average unit weight calibration, pre-tare function
- Kilogram(kg), pound(lb) weighing modes
- Stable sampling range setting function
- Low power and charging status indication
- Built-in rechargeable battery
Specification
| Capacity |
STCH3 / FTCH3 -30: 30kg (60lb)*2g (0.005lb); 30kg (60lb)*1g (0.002lb) STCH3 / DTCH3 / LTCH3 / FTCH3 -60: 60kg (120lb)*2g (0.005lb) STCH3 / DTCH3 / LTCH3 / FTCH3 -75: 75kg (150lb)*5g (0.01lb) STCH3 / DTCH3 / LTCH3 / FTCH3 -150: 150kg (300lb)*10g (0.02lb); DTCH3 / LTCH3 / FTCH3 -300: 300kg (600lb)*20g (0.05lb); 300kg (600lb)*10g (0.02lb) LTCH3 / FTCH3 -600: 600kg (1200lb)*50g (0.1lb); 600kg (1200lb)*20g (0.05lb) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Power Source | AC 110V/230V (±10%) + DC 6V/4 Ah rechargeable battery |
| Dimensions | Indicator: 280 x 220 x 117mm (W x H x D) |
| Platter Size |
STCH3: 300 x 400mm DTCH3: 420 x 520mm LTCH3: 460 x 600mm FTCH3: 400 x 500mm; 420 x 520mm; 600 x 800mm |
| Display | LCD 6/6/6 Digits; 25mm(Height); LED backlight |
Options
- 232：Bi-direction transmission, easy data reading or printing
- RS232：FREE FORM CARD (include Real Time Clock)
- OIML approved model available
-
1/30,000(with temperature compensation)display resolution available, more accurate and stable
