Bench Scale

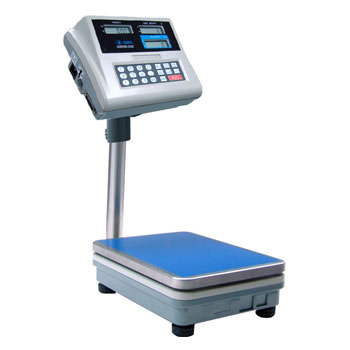

KRCH3 / KTCH3
High Resolution Counting Bench Scale
High Resolution Counting Bench Scale
◉ 50% lighter than U platform
◉ ABS housing and 1mm thick TYPE 304 stainless steel platter
◉ Curve-in sides for easy carrying
- Platform Size: 322 x 242 x 100 mm
Flexible and Various Combinations
- Pole can be placed on either side (level bubble on the pole stand)
X Shape Aluminum Supports:
- Reinforced engineering structure design can support up to 75kg
Light and Portable
- 50% lighter than U platform
- ABS housing and 1mm thick TYPE 304 stainless steel platter
- Curve-in sides for easy carrying
IP X5 wash down design:
- Drainage channel design underneath the platter to prevent water running into the platform
- Side channel act as water barrier and drain water out at 4 corners
- Water barrier of battery cover prevent seepage
- Anti-bug rings to prevent bugs, water, dust and dirt entering the platform
Functions:
- up to 1/30 000 display resolution
- High speed 24bits AD; Display reading speed faster
- Faster weighing stability and zero return
- Zero key and Tare key react faster
- LCD display full tare (Weight-6 digits, Unit Weight-6 digits, Quantity-6 digits)
- 10 preset unit weight function
- Auto calibration function, Over Load protection
- Weight and quantity over-limit warming
- Auto average unit weight, pre-tare function
- Kilogram(kg), pound(lb) weighing modes
- Stable sampling range setting function
- Data accumulations (weight and quantity)
- Low power and charging status indication
Specification
| Capacity |
3 kg (6 lb)*0.2g (0.0005 lb) 3 kg (6 lb)*0.1g (0.0002 lb) 6 kg (6 lb)*0.2g (0.0005 lb) 7.5 kg (15 lb)*0.5g (0.001 lb) 15 kg (6 lb)*1g (0.002 lb) 15 kg (6 lb)*0.5g (0.001 lb) 30 kg (60 lb)*2g (0.005 lb) 30 kg (60 lb)*1g (0.002 lb) 60 kg (120 lb)*2g (0.005 lb) 75 kg (150 lb)*5g (0.01 lb) |
| Operating Temperat | -10°C ~ 40°C (14°F ~ 104°F) |
| Power Source | AC 110/230V ±10% or DC 6V/4AH Rechargeable Battery |
| Dimensions |
Platform: 322 x 242 x 100 mm Pole height: 600mm |
| Display | LCD 6/6/6 Digits; height 14mm |
| Platter Size | 322 x 242mm |
| Platform Materials |
Platform Materials Type 304 Stainless Steel Platter |
| Platter Thickness | 1mm |
| Platter Depth | 16.5mm |
| IP Grade | Platform: IPX5 |
Options
- RS232: Bi-direction transmission, easy data reading or printing
- RS232-F: Free form card (include Real Time Clock)
- OIML approved model available for 1/3,000 display resolution
- 1/30,000 with temperature compensation component more accurate and stable
